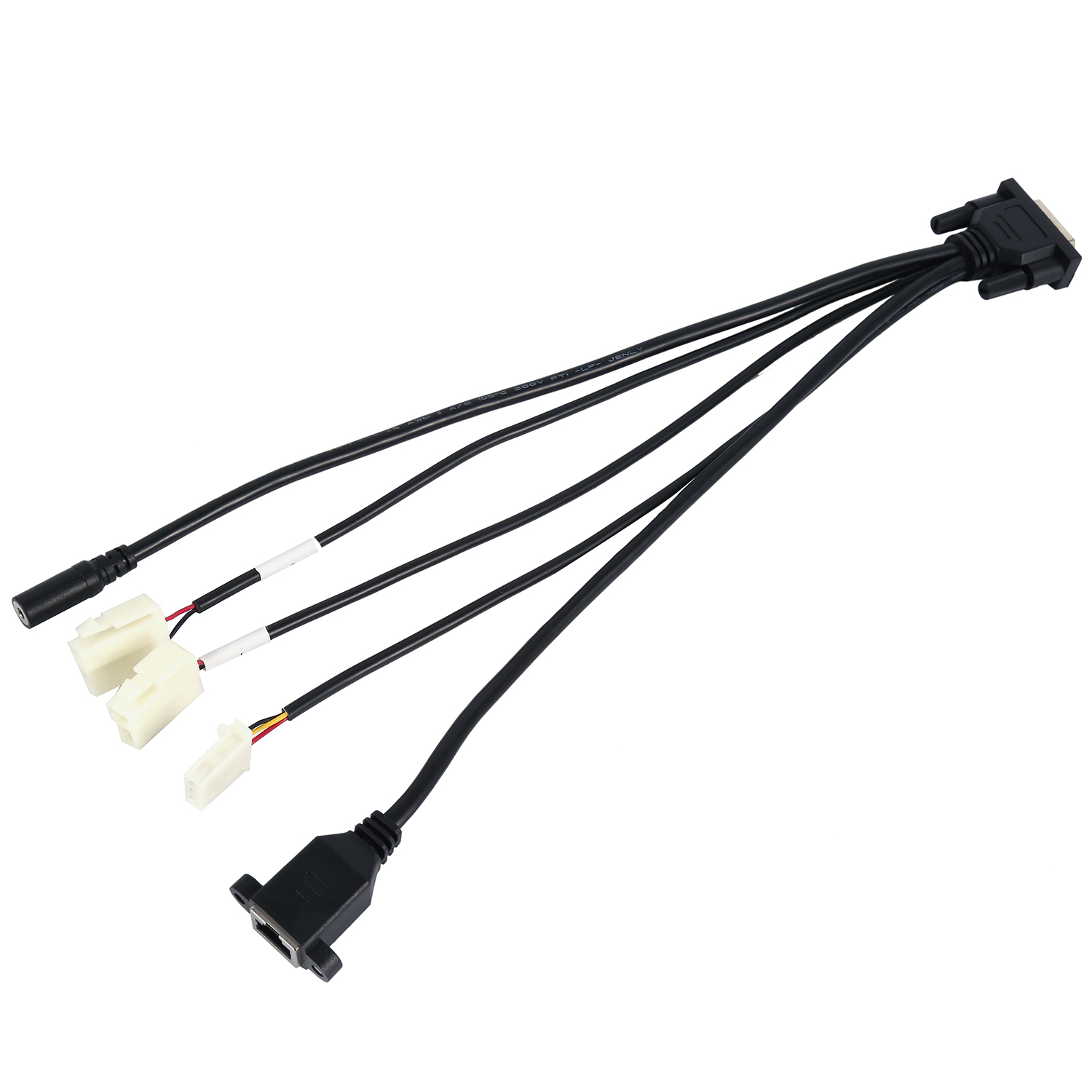

Model Series: EMH-1000 Series
Standard Configuration: Customizable per application requirements
Conductor System
Cable Standards:
UL4703 (PV applications)
UL1015 (general purpose)
UL1332 (automotive grade)
Conductor Options:
16-22AWG tinned copper
Multi-conductor configurations available

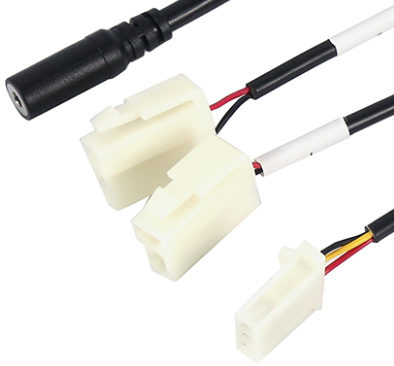

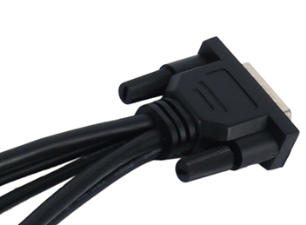

Connector System
Housing Material:
High-temperature nylon (UL94 V-0)
Optional: PBT/PPS for extreme environments
Current Rating: Up to 30A per circuit
Voltage Rating: 1000V DC max
Electrical Safety
300% overcurrent protection rating
<1.5mΩ contact resistance
2500V AC dielectric withstand
Environmental Durability
Operating range: -40°C to +105°C
UV resistance: 3000+ hours QUV testing
Chemical resistance: IP6K7K protected
Mechanical Reliability
50N wire pull-out resistance
Vibration resistant: 10-2000Hz, 15G
Mating cycles: >100 connections
Precision Processing
Automated crimping (±0.02mm tolerance)
Laser-assisted welding
Optical inspection systems
Quality Assurance
100% continuity testing
Hi-pot testing (AC/DC)
Thermal shock validation
North America: UL1977, UL486A-B
International: IEC 62930, EN 50618
Automotive: LV214 (optional)
Length Options: 100mm-5000mm
Color Coding: Standard or custom
Shielding: Optional braided shielding
Labeling: Laser marking/barcode
Production Details:
Prototype Lead Time: 5 working days
Mass Production: 15-20 days (MOQ 1000pcs)
Packaging: Anti-static bags or custom reels
For design consultation:
📧 yilaite8@yeah.net
📞 +86 15726884938 (24/7 WhatsApp)
Important Notice: All performance claims based on standard laboratory conditions. Final product specifications subject to application requirements and regulatory jurisdiction. Consult our engineering team for project-specific validation.
